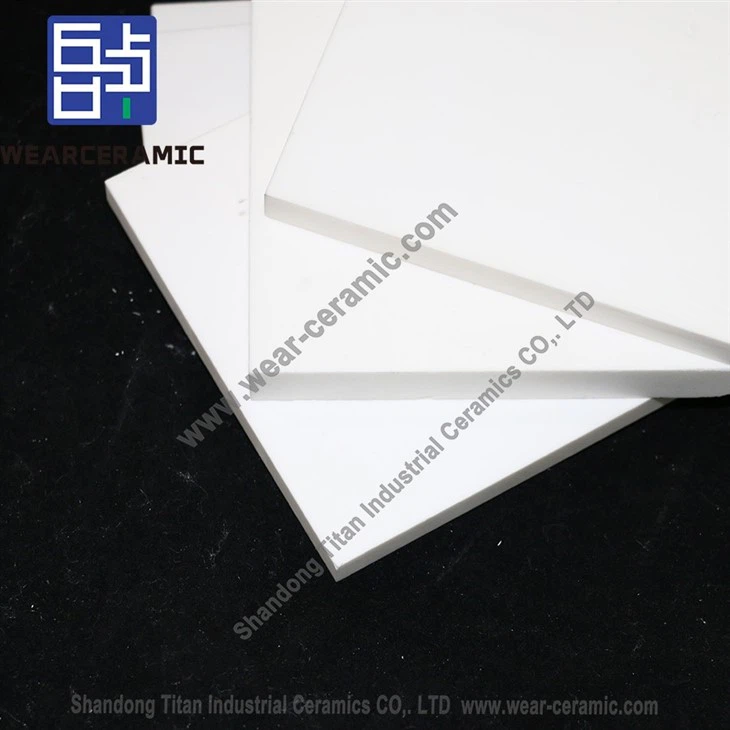

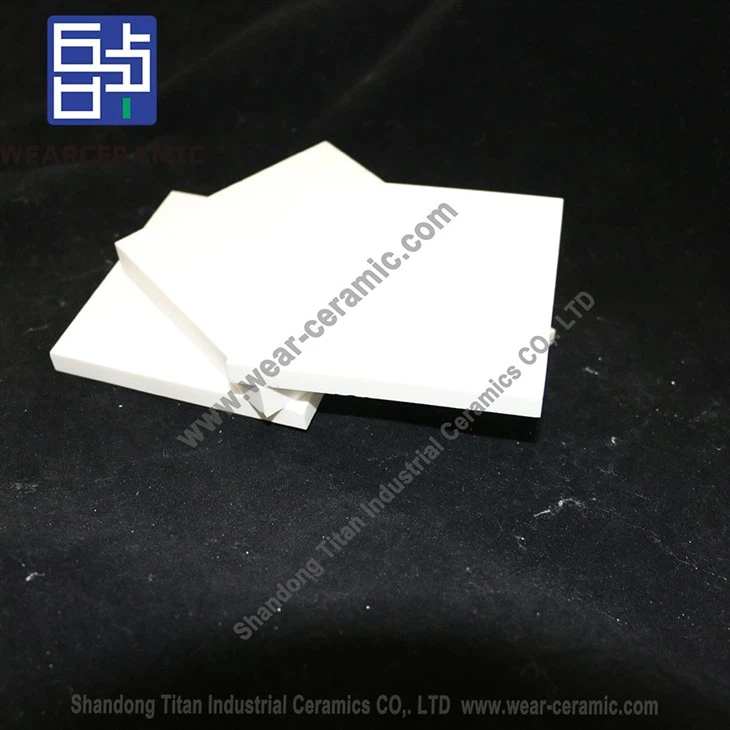

Forro quadrado de óxido de alumínio

Square aluminum oxide liner is a ceramic material made of alumina (Al2O3).Due to its high hardness, strength and wear resistance, it is widely used in various industries.One of its most common applications is as a wear-resistant lining material for industrial equipment.



1. The wear resistance of wear-resistant square liner is much better than that of ordinary lining plate, because alumina ceramics have high hardness and high strength, so it can effectively resist the wear of various materials.Therefore, it is widely used in mining, coal, metallurgy and other industries.

2. Wear-resistant square liner has excellent corrosion resistance and can resist the corrosion of a variety of acids, alkalis and organic solvents, so it is widely used in chemical industry, oil refining and other industries that need corrosion resistant materials.

3. Wear-resistant square liner has excellent high temperature resistance and can withstand high temperature, so it is widely used in high temperature furnace and other industries.

In addition, wear-resistant alumina ceramic plate also has the advantages of smooth surface, not easy to be contaminated, easy to cleangood insulation and high thermal conductivity.



1. Clean the surface of the device where the lining plate is installed.

2. Apply a thin layer of adhesive to the opposite side of the liner.

3. Press the lining plate firmly on the surface of the device.

4. Allow adhesive to dry according to manufacturer's instructions.



	BM92	BMG95	BME95
AL2O3(%)	92±0.5	95±0.5	95±0.5	Greater than or equal to 75	-
ZrO2(%)	-	-	-	Greater than or equal to 21	94.8±0.5
	Greater than or equal to 220	Greater than or equal to 250	Greater than or equal to 300	Greater than or equal to 400	Greater than or equal to 800
	Greater than or equal to 1050	Greater than or equal to 1300	Greater than or equal to 1600	Greater than or equal to 2000	-
(MPam1/2)	Greater than or equal to 3.70	Greater than or equal to 3.80	Greater than or equal to 4.0	Greater than or equal to 4.5	Greater than or equal to 7
	Greater than or equal to 82	Greater than or equal to 85	Greater than or equal to 88	Greater than or equal to 90	Greater than or equal to 88
Wear volume(cm3)	Less than or equal to 0.25	Less than or equal to 0.2	Less than or equal to 0.15	Less than or equal to 0.05	Less than or equal to 0.02
Bulk density(g/cm3)	Greater than or equal to 3.6	Greater than or equal to 3.65	Greater than or equal to 3.7	Greater than or equal to 4.1	Greater than or equal to 5.9
